Rio R1616-NX
0 €
| Dimension | |
|---|---|
| Weight | |
| Device type |

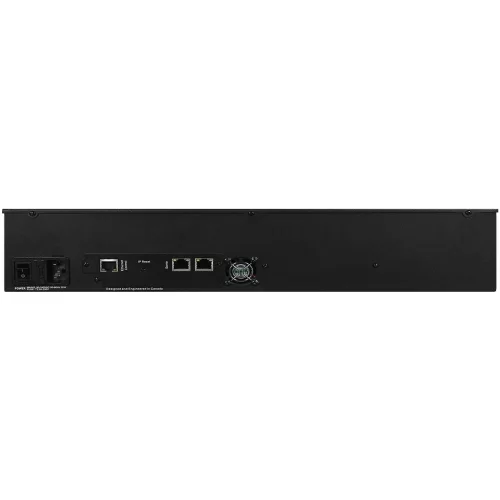

XILICA RIO R1616-NX – a multichannel Dante interface converter from the XILICA RIO family. The model provides 16×16 channels for the Dante audio network and is equipped with sixteen input and output ports on XLR connectors for balanced audio signal connection. The input ports support phantom power for connecting condenser microphones. The device is housed in a compact 2RU high chassis and can be installed in a standard 19″ rack. The front panel features power, activity, and signal presence indicators for the input and output ports; the rear panel houses an IEC power connector, a power switch, Phoenix connectors for input and output analog signal connection, an Ethernet RJ45 connector, and two Dante interface RJ45 connectors.
Number of channels: 16×16
Processor: 40-bit floating point
Sampling frequency: 48 kHz
Dante: 16×16
Input impedance: >10 kΩ
Output impedance: 50 Ω
Frequency range: 20 Hz – 20 kHz (+/- 0.15 dB)
Dynamic range: 110 dB
Total harmonic distortion: 0.002% (1 kHz, 4 dB)
Interface connectors: XLR, RJ45 Dante
Power supply: 90–240 V AC (50–60 Hz), IEC power socket
Dimensions: 483 x 88 x 305 mm
Weight: 6.8 kg
16×16 channels (16 analog inputs, 16 analog outputs)
90–240 VAC (50-60 Hz) (built-in power supply)
Maximum power consumption: <60 W
Control via Ethernet
