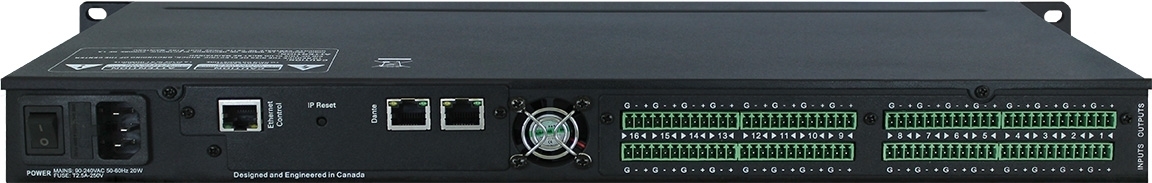

XILICA RIO R1616-N – a multichannel Dante interface converter from the XILICA RIO family. The model provides 16×16 channels for Dante audio networking and is equipped with sixteen input and output ports on Phoenix terminal connectors for balanced audio signal connection. The input ports support phantom power for condenser microphone connection. The device is housed in a compact 1RU-height chassis and can be mounted in a standard 19″ rack. The front panel features power, activity, and signal presence indicators for the input and output ports. The rear panel includes an IEC power socket, a power switch, Phoenix connectors for input and output analog signals, an Ethernet RJ45 port, and two Dante interface RJ45 ports.
Number of channels: 16×16
Processor: 40-bit floating-point
Sampling frequency: 48 kHz
Dante: 16×16
Input impedance: >10 kΩ
Output impedance: 50 Ω
Frequency range: 20 Hz – 20 kHz (+/- 0.15 dB)
Dynamic range: 110 dB
Total harmonic distortion: 0.002% (1 kHz, 4 dB)
Interface connectors: Phoenix, RJ45 Dante, Ethernet
Power supply: 90–240 V AC (50–60 Hz), IEC power socket
Dimensions: 483 x 44 x 229 mm
Weight: 5 kg
