GTV-HDMI-2-HDMIAUD
0 €
| Dimension | |
|---|---|
| Weight | |
| Device type |

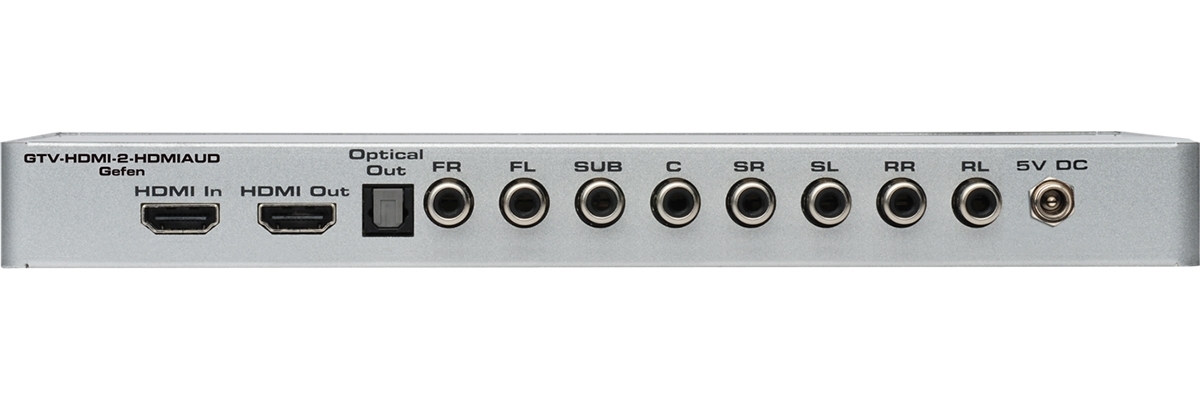

Audio signal decoder Gefen GTV-HDMI-2-HDMIAUD is designed to extract the audio signal embedded in the HDMI 1.3 stream, with output to separate digital outputs for connecting external speaker systems. It supports video signals with resolutions up to 1920×1200 and high-definition formats up to 1080p. The device is compatible with HDMI 1.3, DVI 1.0, and HDCP 1.1, supports multichannel 7.1 audio, Dolby TrueHD, DTS HD Master Audio, as well as Lip-Sync synchronization and CEC control signal transmission. The built-in EDID emulator allows selecting the audio format, and switches on the housing provide convenient control over operating modes. Outputs include HDMI, an optical TOSLINK interface, and 8 RCA connectors for multichannel analog audio. Power is supplied via 5 V with a threaded locking connector for secure power adapter connection. The metal housing is used for mounting the device.
Maximum power consumption: 5 W
LED operation/connection indicator
External power adapter 5 V / 2 A, maximum 5 W
HDMI 1.3, HDCP, 1080p support, audio extraction
