EXT-MFP
0 €
| Weight | |
|---|---|
| Device type |

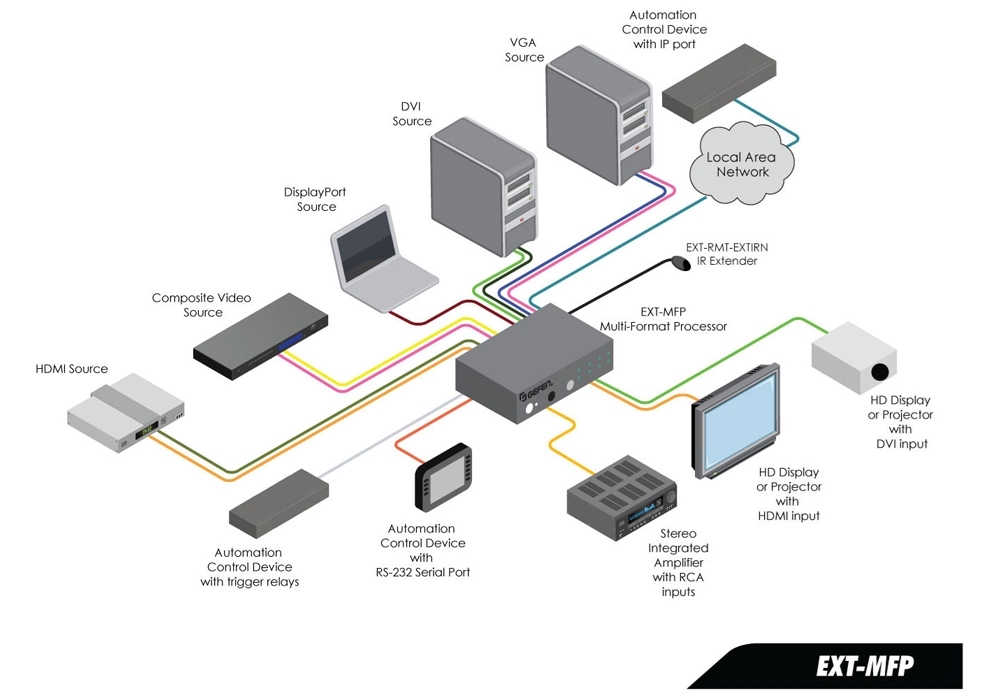

Gefen EXT-MFP Multi-Format Signal Processor converts and scales video signals of various formats: composite video (CV), VGA, DVI-D, HDMI, and DisplayPort, along with analog and digital audio, into DVI-D and HDMI output signals with support for analog stereo and S/PDIF digital audio. Maximum input and output resolution reaches 1080p60 and 1920×1200 (WUXGA). The device supports HDCP, EDID, independent video and audio switching, and implements password protection and access rights management. Control is possible via IR, RS-232, Ethernet (web interface, Telnet, UDP) and is supported by Gefen Syner-G software. The chassis is designed for desktop installation or mounting in a 19” rack with an optional adapter.
Front panel LCD display
Maximum power consumption: 15 W
Control via front panel buttons, OSD menu, IR remote, RS-232, IP (Telnet, Web GUI). Built-in scaler, EDID management.
