SOLARO FR1

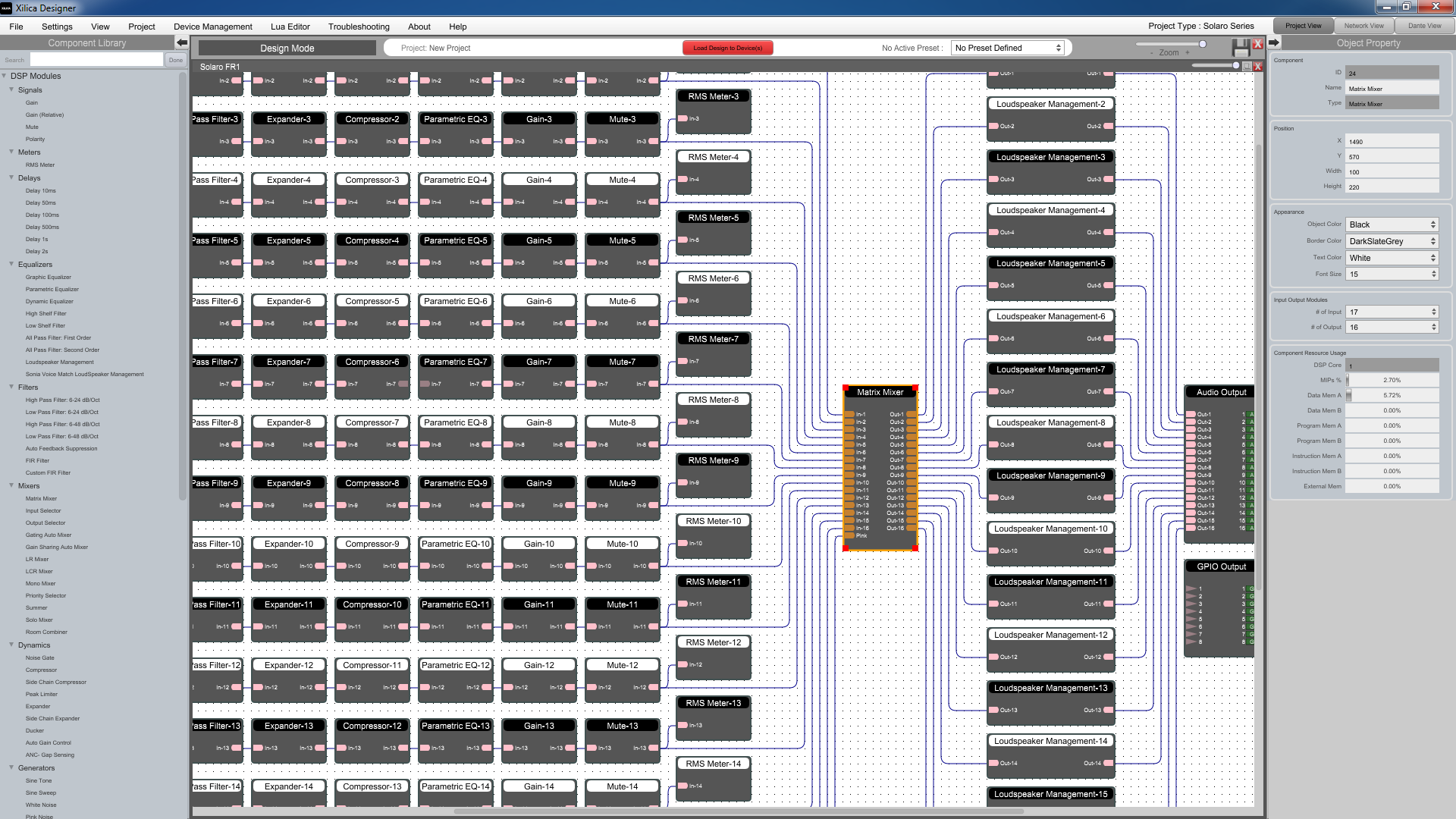

XILICA SOLARO FR1 – a multifunctional audio processor with an open architecture, built on the 16-slot chassis of the XILICA SOLARO family. The model is equipped with sixteen slots for installing I/O modules. In addition to analog and digital audio modules, the chassis allows for the installation and configuration of GPIO and relay modules, enabling the transmission of not only audio data but also control signals over IP networks. Control is managed via Xilica Designer software. The open and flexible architecture allows the user to configure not only the required audio signal processing paths and apply standard processing effects to them, but also to utilize complex intelligent modules with feedback. The optional AEC module allows for acoustic echo cancellation for 8 channels simultaneously with a maximum delay duration of up to 250 ms. The processor can act as a control controller for other devices and is equipped with scheduling capabilities. The use of XTouch hardware and virtual controllers allows for quick creation of control interfaces for end users. The device is housed in a compact 1RU high chassis and can be installed in a standard 19″ rack. The front panel is equipped with an OLED display and local control elements. The rear panel is equipped with an IEC power socket, a power switch, an RJ45 Ethernet port, and two RJ45 Dante interface ports.

– 40-bit XILICA X8 floating-point DSP processor
– 32-bit analog-to-digital/digital-to-analog converters
– Sampling frequency 48/96 kHz
– 16 slots for module installation
– Optional Dante 64×64 module (XC-CTODN)
– Modular architecture
– Flexible configuration
– Remote Ethernet control, support for Xilica Designer software, XTouch
– Optional AEC up to 8 channels/100ms, 4 channels/250ms

Number of slots: 16
Processor: 40-bit floating-point
Sampling frequency: 48/96 kHz
Introduced delay: 4/2 ms (48/96 kHz respectively)
Interface connectors: RJ45 Ethernet
Power supply: 90–240 V AC (50–60 Hz), IEC power socket
Dimensions: 483 x 44 x 305 mm
Weight: 5 kg

16 expansion card slots

90–240 VAC (50-60 Hz) (built-in power supply)

OLED display on the front panel

Maximum power consumption: <60 W / Heat dissipation: 205 BTU/hr

Control via Ethernet (Xilica Designer software), 40-bit floating-point processor, 48/96 kHz sampling
