MIMO4040CDN
0 €
| Dimension | |
|---|---|
| Weight | |
| Device type | |
| Input voltage |
MIMO4040CDN Ecler – 40×40 digital audio matrix with full DSP and Dante/AES67 interface, specifically designed for conference rooms and installations with echo cancellation (AEC), automatic mixing and feedback suppression.
– Analog inputs/outputs: 8 mic/line inputs (balanced, Phoenix), 8 line outputs (balanced, Phoenix).
– Network audio channels: 32×32 Dante/AES67, two Dante ports (primary/secondary) for network redundancy.

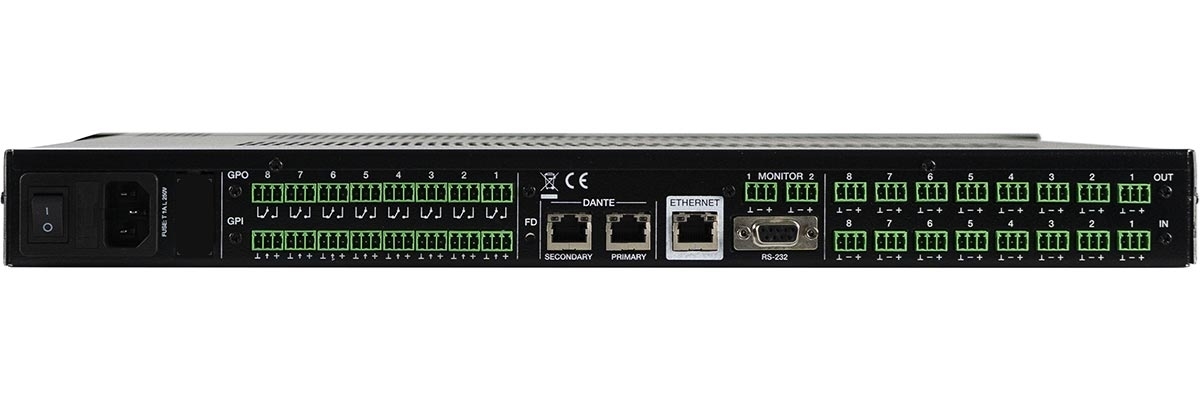

– Control and integration: 8 GPI, 8 GPO, Ethernet port for EclerNet/UCP/TP-NET/WPNET, RS-232 serial port for external controllers.
Front panel with status indicators (LED indication for inputs/outputs, network, etc.), without a large LCD screen.
Power supply AC 100–240 V, 50/60 Hz; maximum power consumption approximately 30–40 W.
Configuration via EclerNet software (full 40×40 matrix, filters, dynamic processing, AEC, automixer, Dante/AES67 routing, GPI/GPO, events and schedules; control via Ethernet and RS-232, support for UCP/TP-NET/WPNET panels).
