GTB-UHD-HBTL
0 €
| Dimension | , |
|---|---|
| Weight | |
| Device type |

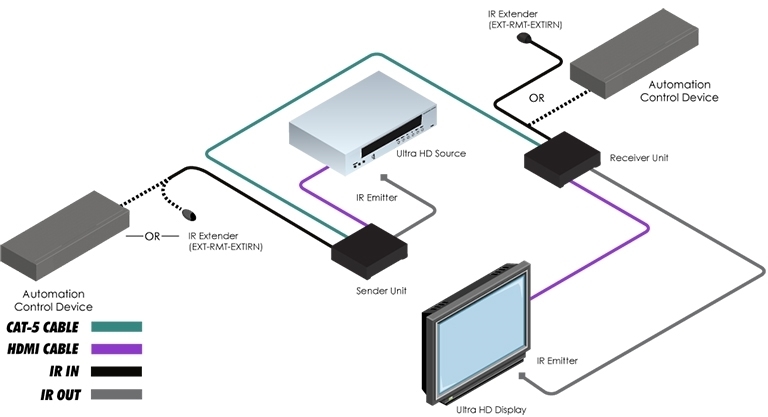

GTB-UHD-HBTL Kit is designed for transmitting HDMI 2.0 signal with resolution up to 4K/60 Hz and multi-channel audio over a single CAT5e/6 A twisted pair cable over distances up to 70 meters for Full HD and up to 40 meters for 4K. The kit includes a transmitter and a receiver, supports bi-directional IR receiver for remote control transmission, bi-directional Power over Link power transmission, as well as content protection standards (HDCP 1.4/2.2), extended EDID settings, and modern audio formats such as Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, and LPCM 7.1. Thanks to its compact size and convenient mounting, the device is suitable for installations in meeting rooms, conference halls, and outdoors, where reliable transmission of high-quality video signals over long distances without delays and signal loss is required.
One CAT5e/CAT6a twisted pair
Maximum power consumption: 10 W (total)
10 W max., Power over Link (PoL)
EDID management, Gefen Syner-G software support
