EXT-UHDV-HBTLS-TX
0 €
| Dimension |
Maximum transmission distance up to 70 m for 4K Ultra HD and up to 100 m for 1080p Full HD. |
|---|---|
| Weight | |
| Device type |

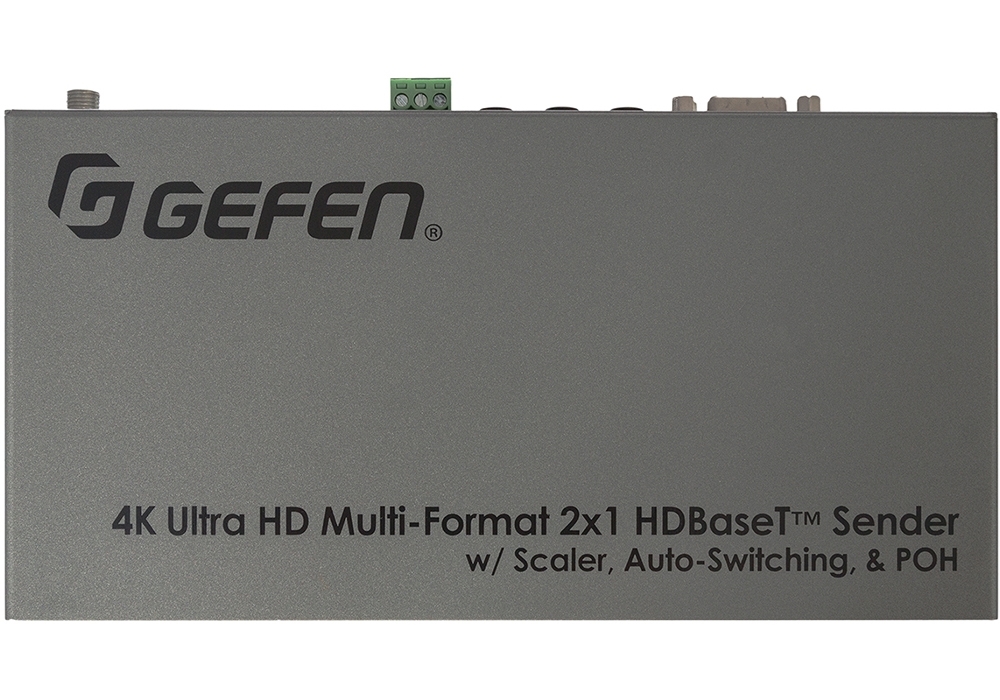

The Gefen EXT-UHDV-HBTLS-TX transmitter combines the functions of a scaler, switcher, and transmitter for HDMI and VGA signals with auto-switching. It supports resolutions up to 4K Ultra HD (4096×2160/30 with YUV 4:4:4) and 4K @ 60 Hz (3840×2160/60 with YUV 4:2:0), as well as VGA with audio at 1920×1200/60. Transmission is via CAT5e twisted pair cable using HDBaseT technology, with a distance of up to 40 m for 4K and 70 m for 1080p. The device supports HDCP 1.4, EDID, CEC, 3DTV, RS-232 control functions, bidirectional IR, and PoH (Power over HDBaseT). VGA scaling is configurable. Control and updates are performed via the mini-USB port and Gefen Syner-G software.
Not present (OSD menu available for configuration)
Maximum power consumption: 15 W. PoH (Power over HDBaseT) support — powered by a compatible receiver/switcher.
Automatic input switching, control via RS-232, IR, and via IP (Web GUI), OSD menu, built-in scaler.
