EXT-UHDKA-LANS-TX
0 €

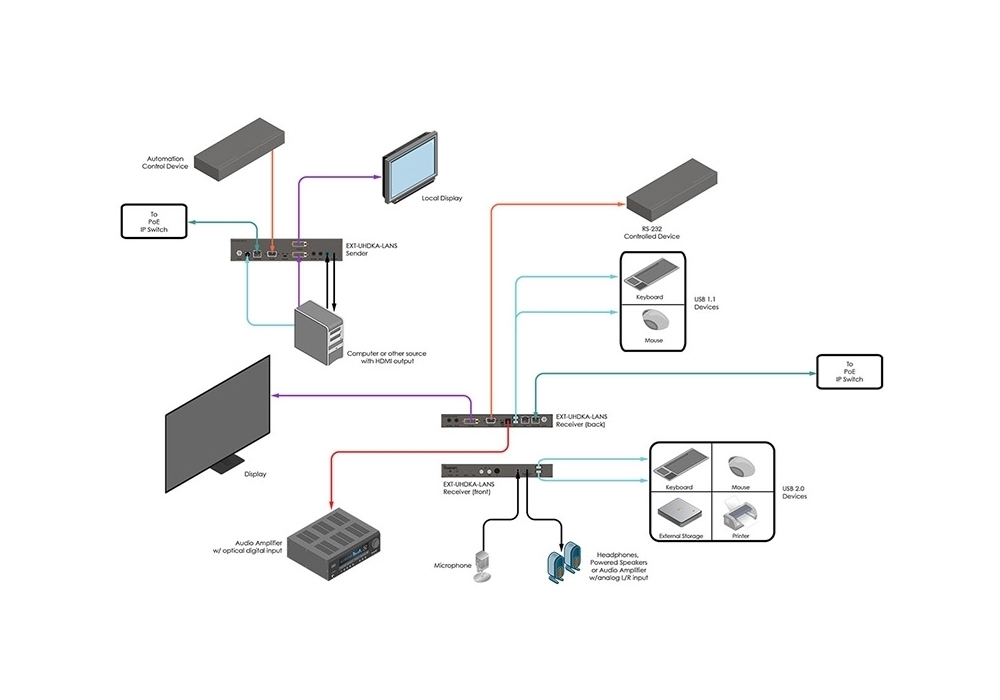

The Gefen EXT-UHDKA-LANS-TX signal transmitter enables the transmission of HDMI 4K/60 (4:2:0), USB, RS-232, audio, and infrared (IR) signals over a standard 1000BaseT Ethernet local area network using CAT5e/6 twisted pair cable over distances of up to 100 meters. The device features a loop-through HDMI output, supports HDR, HDCP 1.4 and 2.2, and Deep Color technologies, and provides transmission of multi-channel audio up to 7.1 channels, including Dolby Atmos and DTS:X. Control is possible via the built-in web interface, Telnet, and UDP, and power can be supplied via PoE or from an external 5 V power adapter. The transmitter is compatible with the Gefen “virtual matrix” system, allowing for the integration of up to 65,000 transmitters and receivers.
Not present (features an OSD menu for configuration and LED indicators)
Maximum power consumption: 20 W. PoE (Power over Ethernet) support — power via a PoE switch.
Control via Web GUI (IP), OSD menu, RS-232, IR. Scaling on the receiver (RX) up to 4K Ultra HD.
