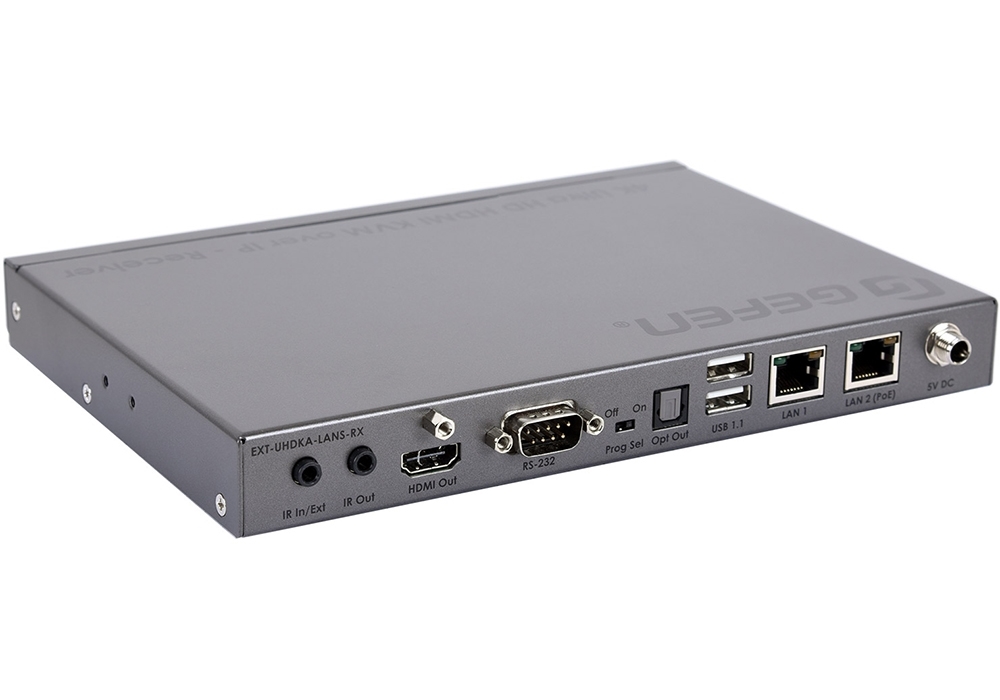

EXT-UHDKA-LANS-RX
0 €
| Dimension |
Maximum transmission distance up to 100 m per Ethernet network segment. |
|---|---|
| Weight | |
| Device type | , , , , |
Gefen EXT-UHDKA-LANS-RX Receiver receives HDMI 4K/60 (4:2:0), USB (4 Type A ports — 2 USB 1.1 and 2 USB 2.0), RS-232, stereo audio, and infrared (IR) control signals over IP Ethernet networks (1000BaseT) via Cat.5e/6 twisted pair cable at distances up to 100 meters. Supports HDCP 1.4 and 2.2, HDR, Deep Color, and transmission of multichannel audio up to 7.1 with high bitrate (including Dolby Atmos, DTS:X). Features a built-in Gigabit Ethernet switch, control is possible via web interface, Telnet, UDP. Suitable for building video walls up to 16×16 and complex AV/IT systems.
Not included (features an OSD menu for configuration and LED indicators)
Maximum power consumption: 20 W. PoE (Power over Ethernet) support — powered via a PoE switch.
Control via Web GUI (IP), OSD menu, RS-232, IR. Built-in scaler for fitting the image to the display.
