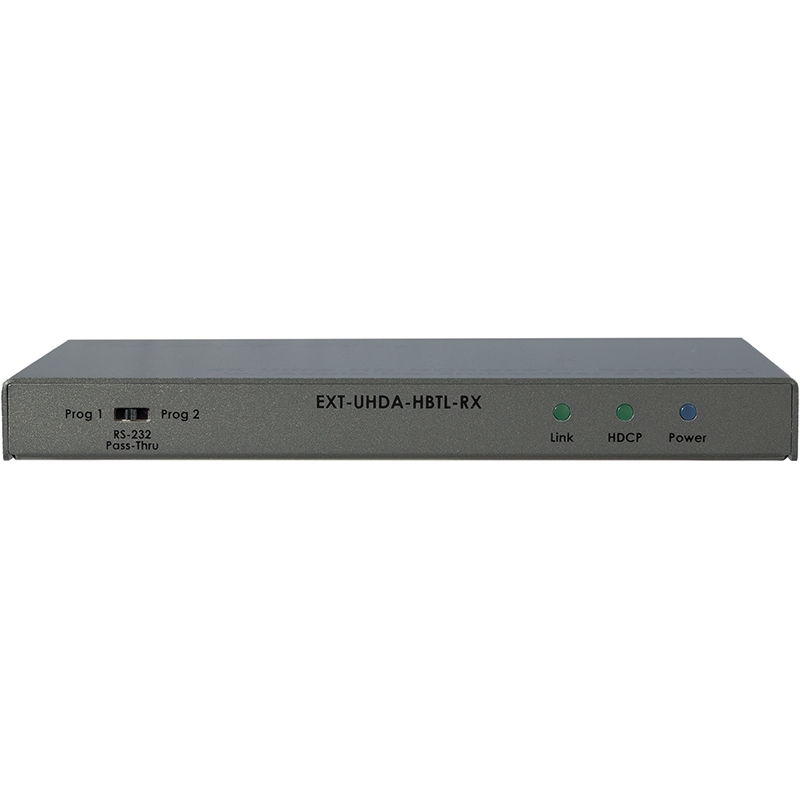

EXT-UHDA-HBTL-RX
0 €
| Dimension | |
|---|---|
| Weight | |
| Device type |
Receiver (decoder) for HDMI/audio signals from HDBaseT with audio de-embedder. |
Gefen EXT-UHDA-HBTL-RX Receiver — professional equipment for receiving HDMI 2.0 signal with support for resolutions up to 4K Ultra HD (4096×2160/30 at YUV 4:4:4, 3840×2160/60 at YUV 4:2:0) and 3D. The device supports HDCP 1.4/2.2, EDID, CEC, and transmission of multichannel audio up to 7.1 channels, including Dolby Atmos, DTS:X, and DTS-HD Master Audio. Equipped with an analog and digital audio de-embedder, bidirectional IR, RS-232, and PoH support — Power over HDBaseT 2.0. Transmission distance reaches 40 m for 4K and 70 m for 1080p. Control and firmware updates are performed via a USB port using Gefen Syner-G software. The housing is compact, with mounting capability to any flat surface.
None. Includes LED indicators for power, connection, and activity.
Maximum power consumption: 15 W. Supports PoH (Power over HDBaseT) — power can be supplied from the transmitter.
EDID management, CEC support, RS-232, IR.
