EXT-UHD-LANS-TX
0 €
| Dimension |
Maximum transmission distance up to 100 m per Ethernet network segment. |
|---|---|
| Weight | |
| Device type |
Transmitter (encoder) for 4K HDMI RS-232 audio and IR signals over Ethernet network (AV over IP) |

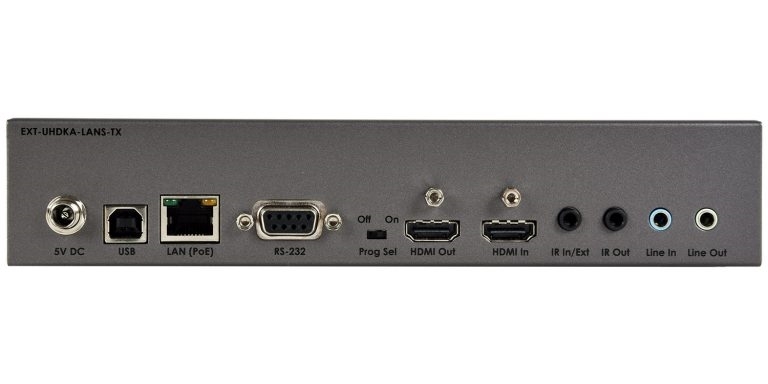

The Gefen EXT-UHD-LANS-TX transmitter is designed for transmitting HDMI 4K/60 (4:2:0), RS-232, audio, and infrared (IR) control signals over a Gigabit Ethernet network (1000BaseT) using standard Category 5e, 6 cables. It supports HDCP 1.4 and 2.2, HDR, Deep Color, and multichannel audio LPCM up to 7.1, Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio. The device features a loop-through HDMI output for local source monitoring, a built-in scaler, an audio de-embedder with analog and digital outputs, and management is performed via a built-in web interface, Telnet, UDP, and supports integration with Gefen Keyboard Switching Controller software. Power can be supplied via PoE or through an external power adapter.
Not present (has LED indicators)
Maximum power consumption: 20 W. PoE (Power over Ethernet) support — power via a PoE switch.
Management via Web GUI (IP), OSD menu, RS-232, IR. Scaling on the receiver (RX) up to 4K Ultra HD.
