EXT-UHD-LANS-RX
0 €
| Dimension |
Maximum transmission distance up to 100 m per Ethernet network segment. |
|---|---|
| Weight | |
| Device type | , , , |

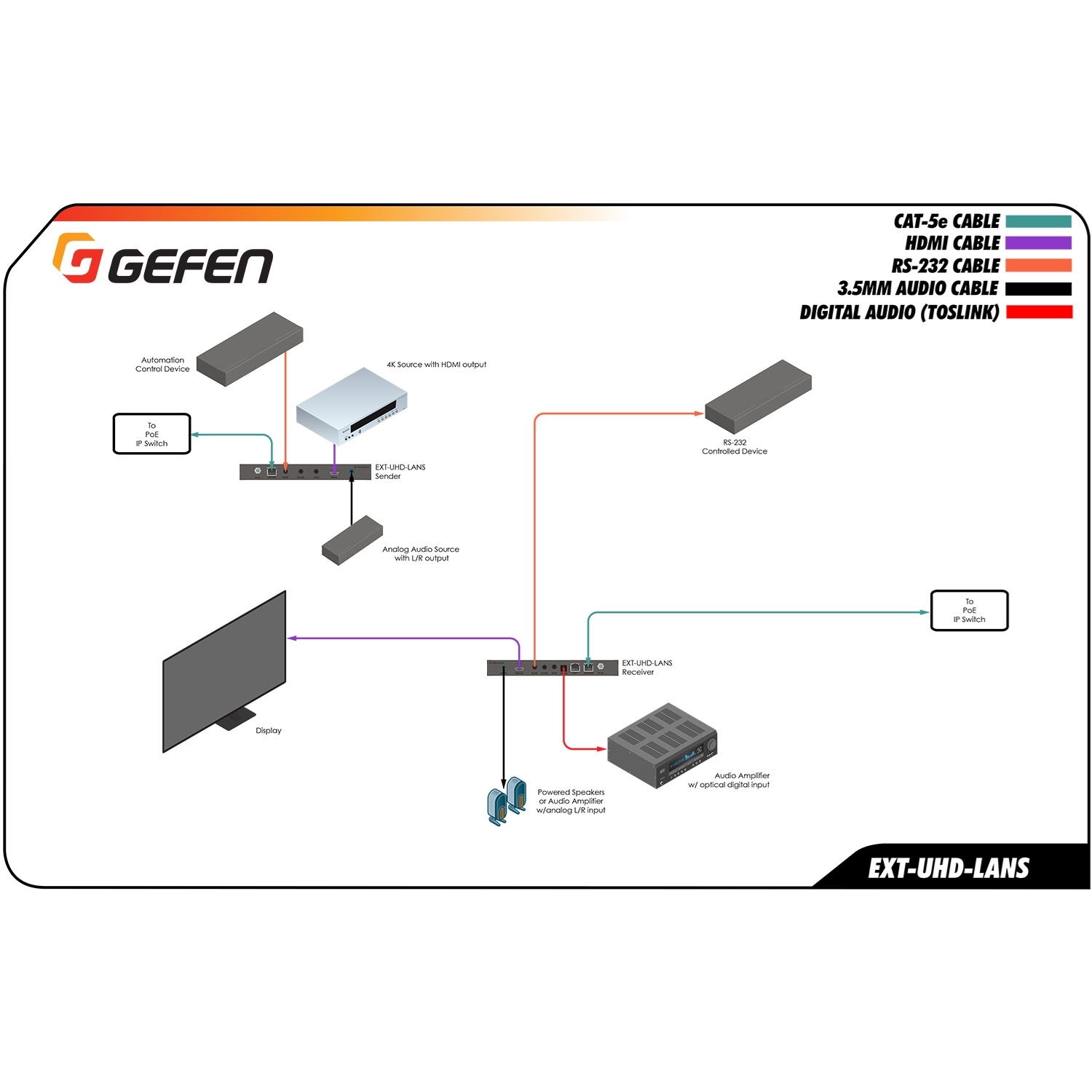

The Gefen EXT-UHD-LANS-RX receiver is designed to receive 4K HDMI 60 Hz (4:2:0), RS-232, audio, and infrared (IR) control signals from a Gigabit Ethernet network (1000BaseT) with support for Category 5e and 6 cables. The device supports HDCP 1.4 and 2.2, HDR, Deep Color, and multi-channel uncompressed digital LPCM audio up to 7.1, including Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio. It features a TOSLINK digital audio output and can be powered via PoE. Control is possible through the built-in web interface, Telnet, UDP, and it also supports building virtual video wall matrices up to 16×16 devices with Gefen EXT-CU-LAN controllers.
No (has LED indicators)
Maximum power consumption: 20 W. PoE (Power over Ethernet) support — power via a PoE switch.
Control via Web GUI (IP), OSD menu, RS-232, IR. Built-in scaler for fitting the image to the display.
