EXT-DP-CP-FM10
0 €
| Weight | |
|---|---|
| Device type |

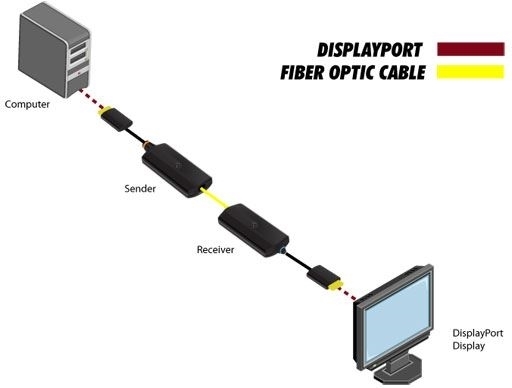

The Gefen EXT-DP-CP-FM10 kit is designed for transmitting DisplayPort 1.1 signals over a single multimode fiber optic cable with SC connectors over distances up to 1000 m (OM2/OM3) or up to 300 m (OM1). It supports resolutions up to 2560×1600 (WQXGA) with a pass-through bandwidth of 14 Gbps, as well as HDCP and DPCP. The device provides bidirectional DDC signal transmission, features compact pigtail modules for dynamic installation, and reduces the mechanical load on equipment connectors. Power supply: 5 V, maximum power consumption: 1.5 W. Suitable for professional AV and broadcast systems.
Not included (includes LED indicators)
The receiver (RX) is powered by an external 5 V DC power adapter; the transmitter (TX) is powered by the DisplayPort source
Plug-and-play, HDCP support, supports resolutions up to 2560×1600
