EXT-ADA-LAN-RX
0 €
| Dimension | |
|---|---|
| Weight | |
| Device type |
Audio signal receiver RS-232 and IR from Ethernet (part of the Audio over IP system) |

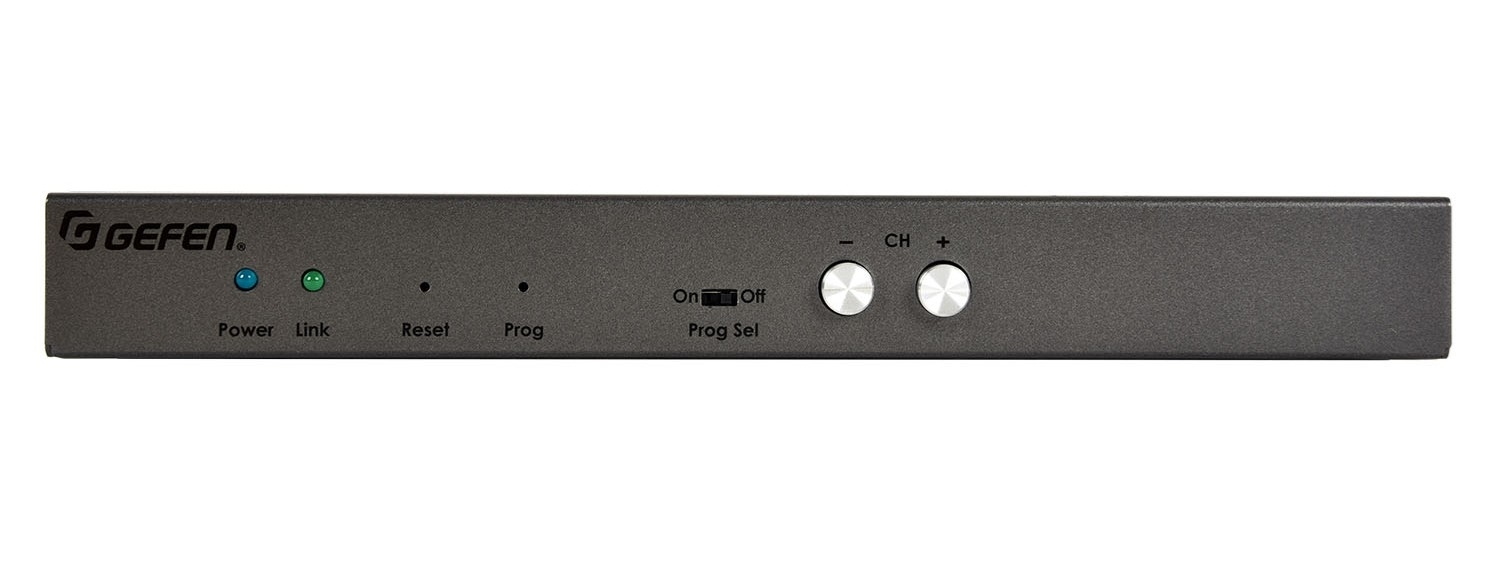

Gefen EXT-ADA-LAN-RX Ethernet Audio, RS-232, and IR Signal Receiver receives bidirectional RS-232 signals, analog audio (3.5 mm miniJack), digital audio (TOSLINK and RCA), and infrared control from 1000BaseT IP networks over Category 5e or 6 cable at distances up to 100 meters. Supports power via PoE (802.3af) or from an external 5 V adapter. Equipped with a built-in two-port Gigabit Ethernet switch, controlled via web interface, Telnet, and UDP. Compatible with EXT-CU-LAN controllers and the virtual matrix system with thousands of devices. Compact housing, half the width of a 19″ rack shelf, features mounting brackets and can be placed behind a display with connection to an external IR module.
Maximum power consumption: 3 W. Power via PoE (802.3af) or from an external 5 V source.
Control via web interface, Telnet, UDP. Program and Program Select buttons.
