EXT-4K600A-MF-51-HBTLS
0 €
| Dimension |
HDBaseT signal transmission up to 70 m (1080p Full HD) or 40 m (4K) over CAT-5e cable. |
|---|---|
| Weight | |
| Device type |
Multi-format switcher-scaler with automatic switching and HDMI/HDBaseT outputs. |

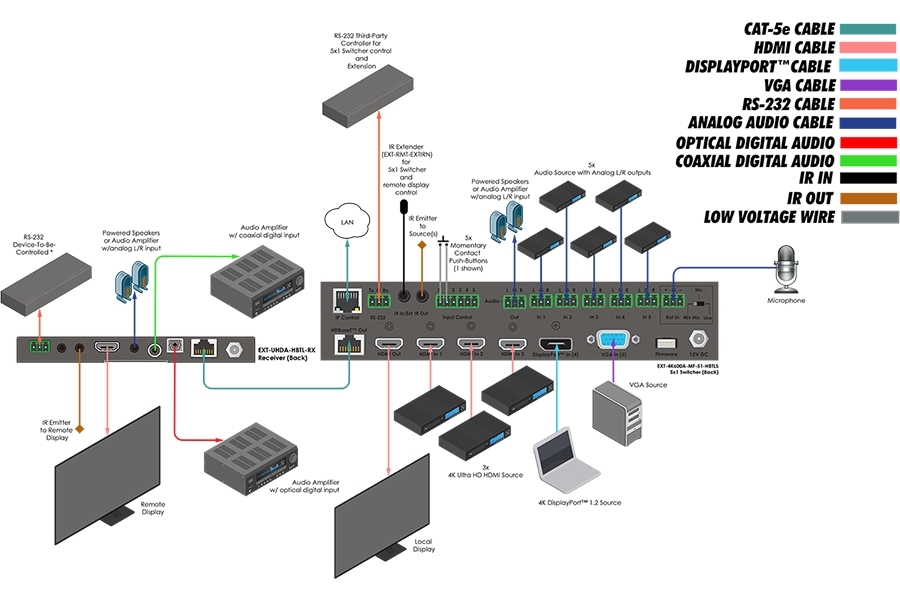

Multiformat processor and auto-switcher for VGA, 3×HDMI, DisplayPort 1.1, and audio (5× Phoenix 3-pin + Mic/Line) signals into HDBaseT signals with PoH and HDMI 4096×2160/60 (4:4:4) with HDCP 1.4, 2.2, EDID, and CEC, audio (Phoenix), control via IR, RS-232, and dry contacts. Range: 1080p – 70 m, 4K – 40 m. Compatible receiver: EXT-UHDA-HBTL-RX.
Input bandwidth up to 600 MHz TMDS Clock (18 Gbps); output up to 300 MHz (10.2 Gbps)
No built-in display; control via on-screen menu (OSD) with IR remote
Maximum power consumption: 12 W without powering the receiver, maximum 24 W when powering the receiver via PoH (Power over HDBaseT)
Automatic or manual input switching, scaling (scaler), EDID management, RS-232, IR, web interface, contact closure
