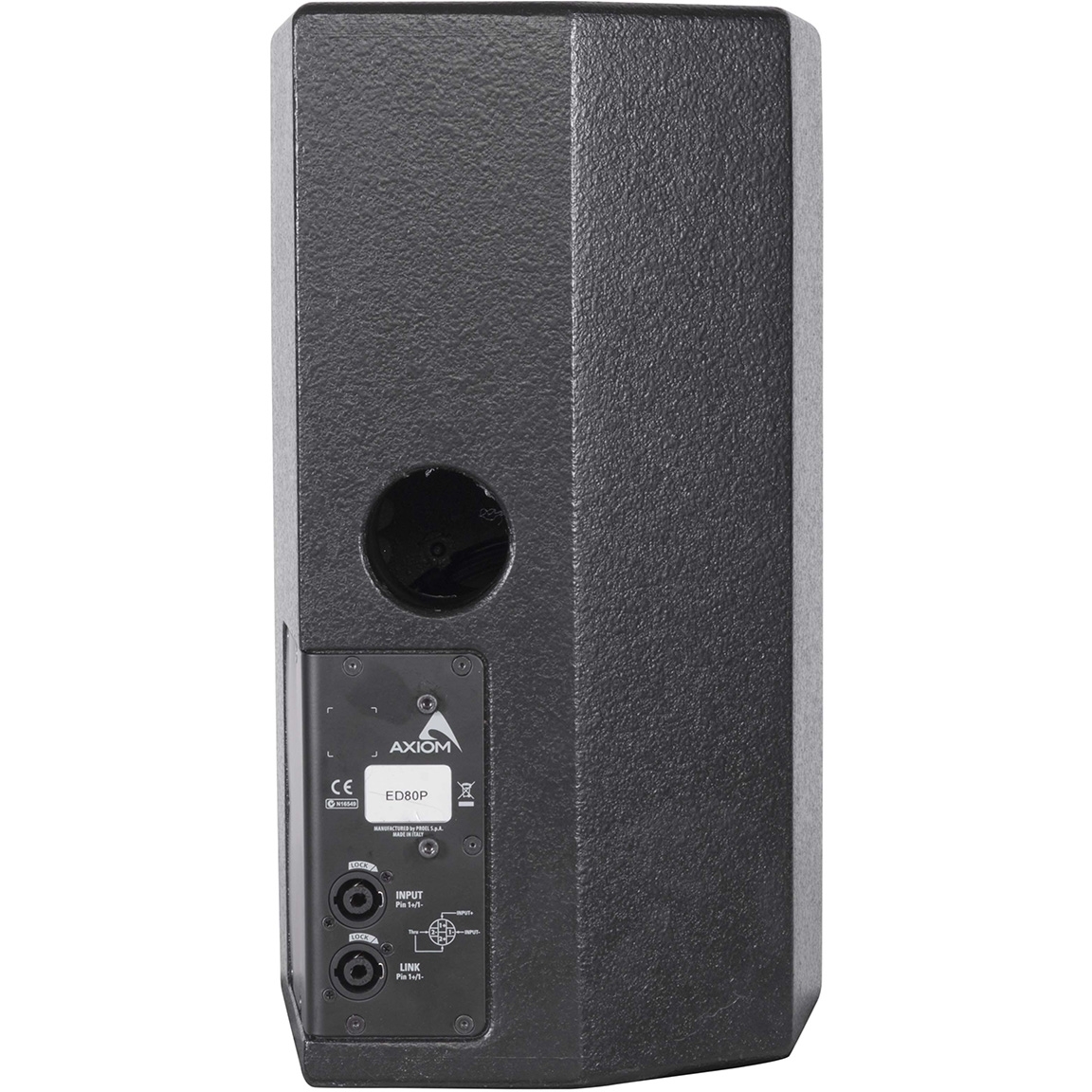

ED80P

The Axiom ED80P black passive loudspeaker is a two-way speaker with an 8-inch low-frequency driver and a 1-inch high-frequency driver. The nominal power is 280 W, the program power is 560 W, sensitivity is 95 dB, and the maximum sound pressure level is 124 dB. The design features a proprietary horn with an asymmetric directivity pattern: 120° horizontally at the bottom and 60° at the top, and 55° vertically. The frequency range is 75 Hz – 18 kHz (–6 dB). It can function as a monitor (35° angle), is equipped with a rotatable high-frequency horn, a 35 mm pole mount socket, and SpeakON connectors.
